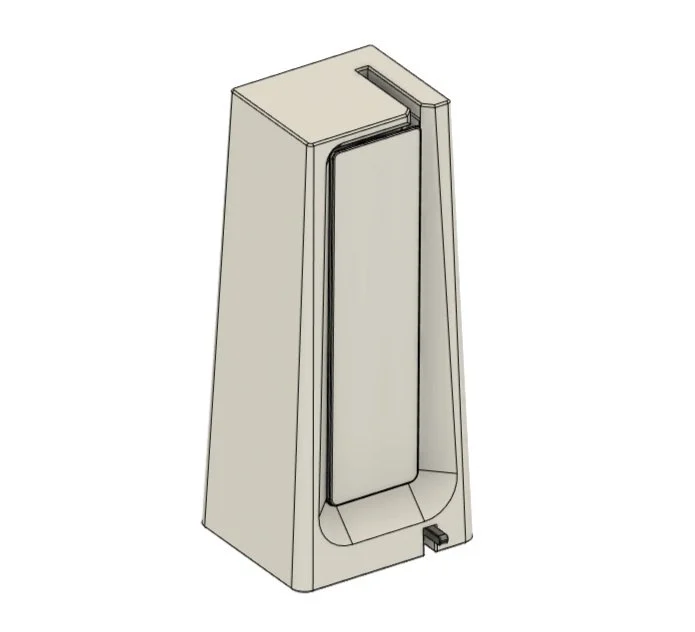

Spring Loaded Toothbrush Case



Designed and constructed a 3D printed spring loaded toothbrush case that uses multiple mechanisms to achieve a certain presentation of a toothbrush. The dampened spring loaded cantilever hinge door is triggered by the latch button on the bottom of the case. The door mechanism is coupled to the trigger of the main toothbrush holder in such a way that when the door reaches a certain spot in it’s rotation the main toothbrush holder latch is released, presenting a toothbrush in a dramatic fashion.
